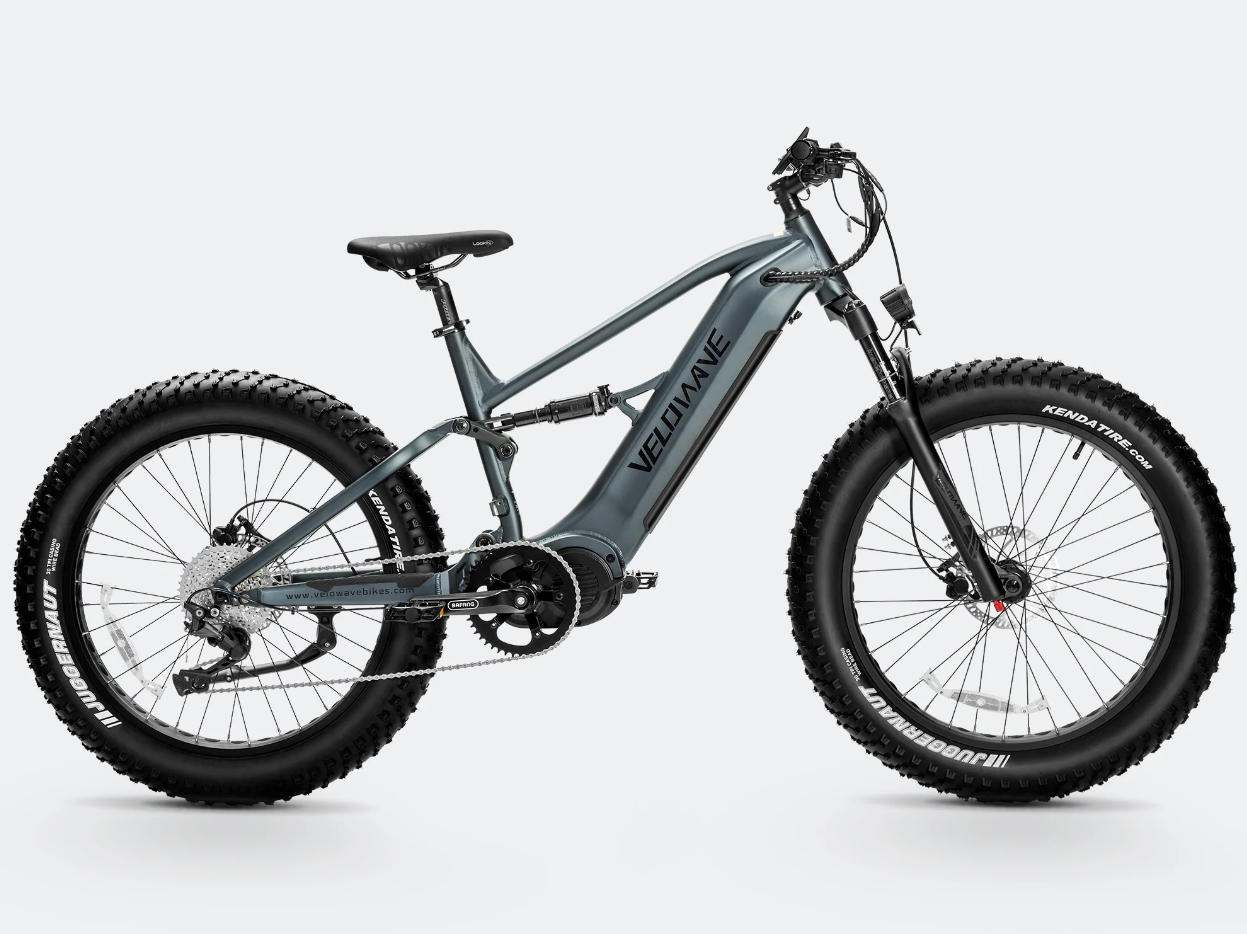

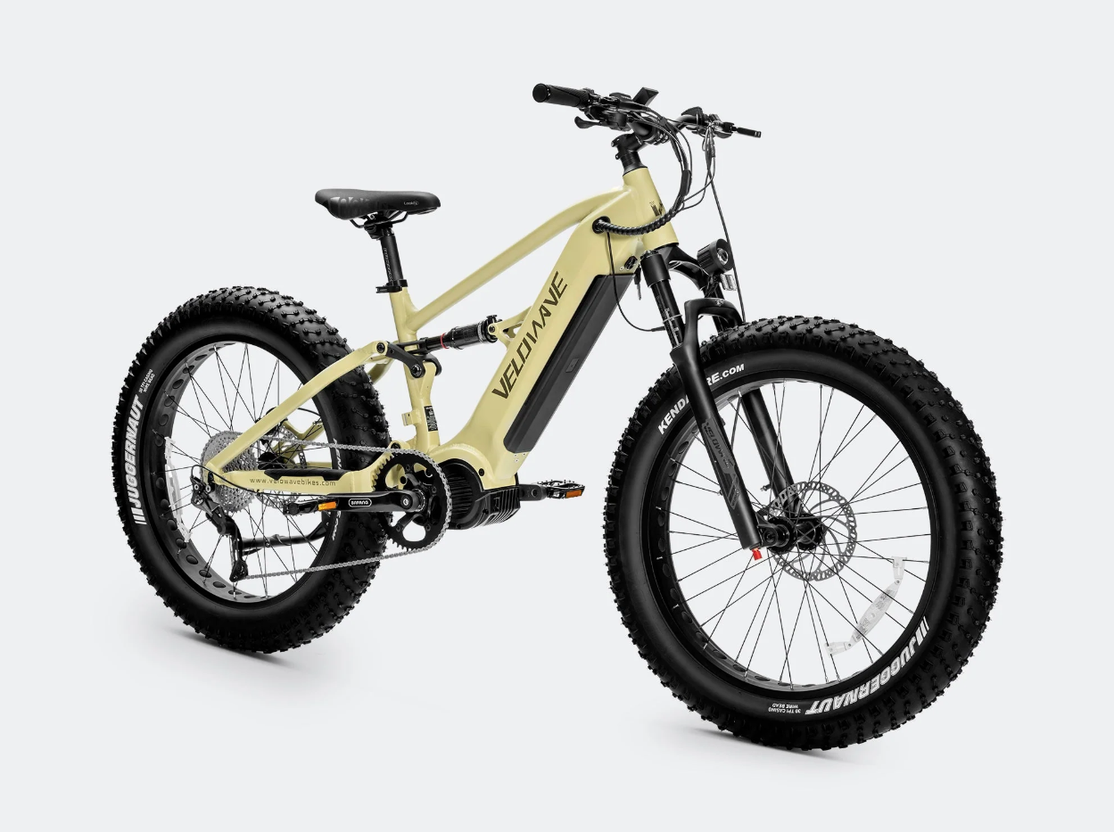

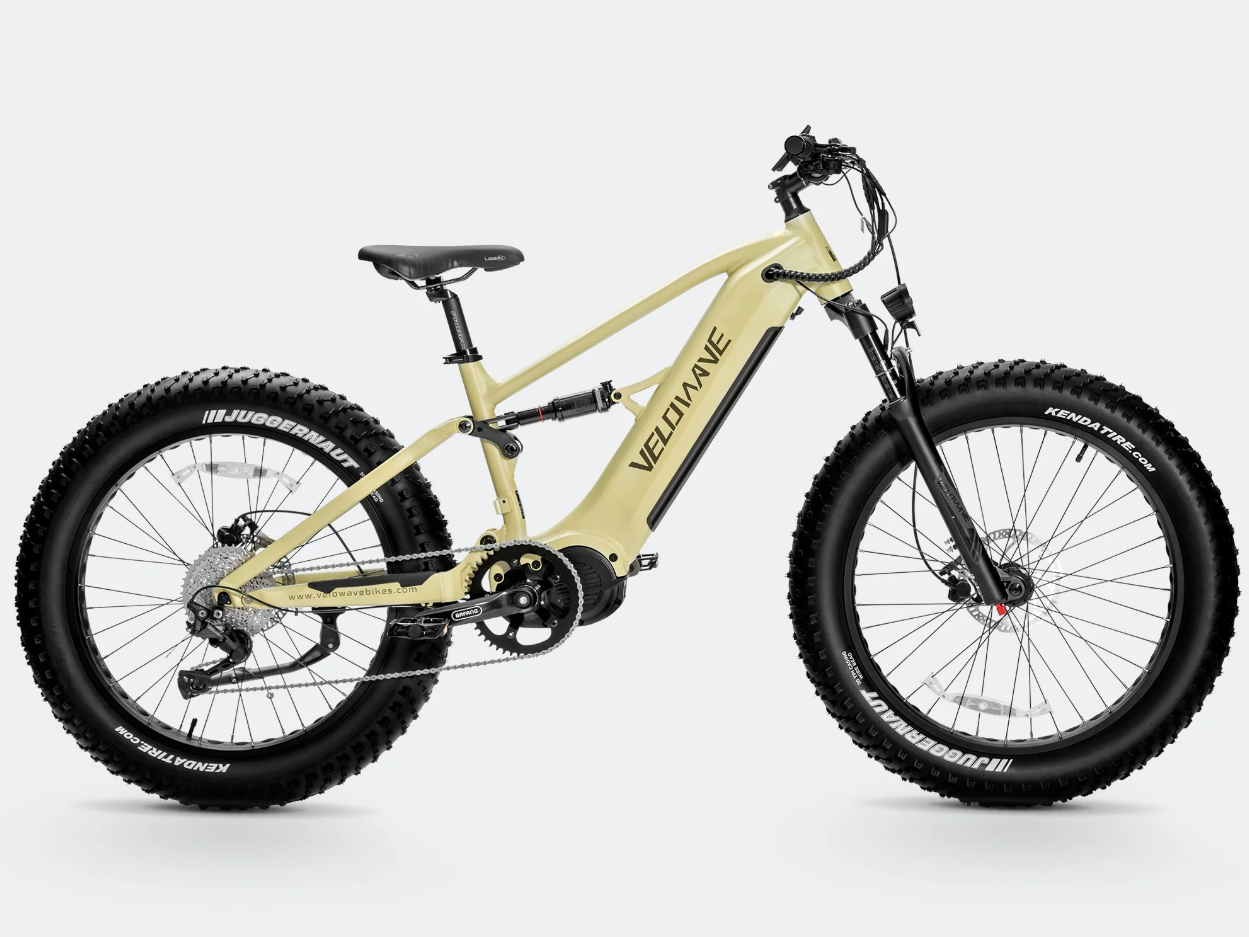

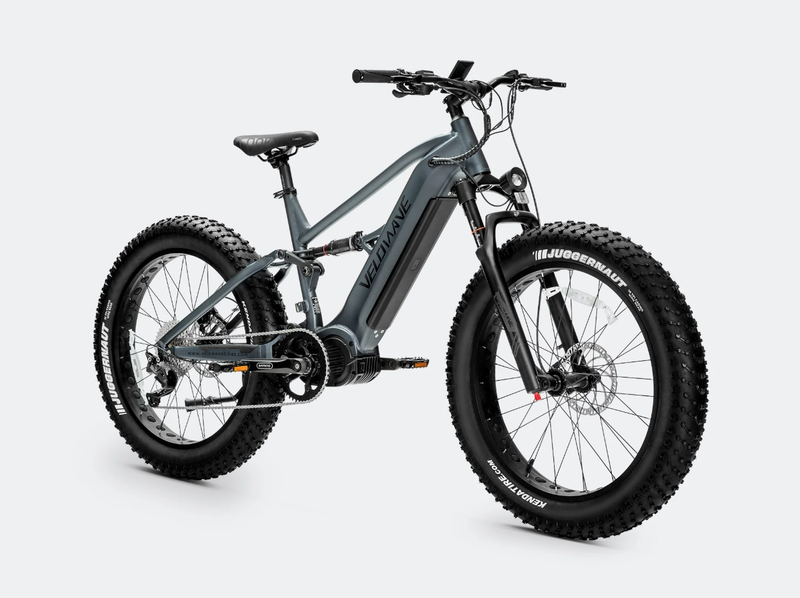

VELOWAVE Brawny XM 1000W Fat Tire Electric Mountain Bike

HIGHLIGHTS

• MOTOR: 1000W （Peak 1200W，160Nm

• BATTERY: Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells


• DERAILLEUR: Shimano Deore RD-M4120 10-Speed

• FRAME MATERIAL: 6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm

• FORK: Air Suspension Fork with 100mm travel, with lockout

• REAR SUSPENSION: Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment

• TIRE: Kenda 26" x 4.0" Fat Tires

• BRAKE: Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function

• Standover Height: 17" 774mm / 19" 823mm

• Weight: 82 lbs / 37.2 kg (including battery)

• Load Capacity: 385 lbs / 175 kg (including cargo)

Brawny XM 1000W 160NM Torque 48V 20AH Fat Tire Electric Mountain Bike

Unlock the freedom to conquer any terrain with the Brawny Electric Bike and redefine your limits with every ride. Crafted from lightweight aluminum alloy, the Brawny features a sleek frame with integrated front and rear suspension, offering 139mm of plush travel. It’s designed to absorb bumps and smooth out rough terrain, ensuring a comfortable and controlled ride.

KEY FEATURES:

• Unstoppable Power: Equipped with a robust 1000W motor (peaking at 1200W) and delivering an impressive 160Nm of torque, the Brawny effortlessly powers through inclines and rough landscapes, making every ride exhilarating.

• Suspension and Brake: Take on rough terrains with confidence thanks to the air suspension fork with 100mm travel and lockout feature, coupled with a Rockshox RS-MNR-R-C4 rear suspension for 44mm travel and external rebound adjustment. Tektro hydraulic disc brakes with 180mm discs and a power-cut-off function ensure reliable stopping power under any conditions.

• Smart Display and Speed: Navigate with condifence using the TFT Smart Easy Read Display, featuring a colorful screen and backlight for reasy readability in all conditions. Enjoy speeds up to 37 MPH with pedal assist and up to 20 MPH on throttle mode, ensuring a swift and responsive ride.

• Long-Lasting Battery: The Brawny boasts a removable 48V 20Ah Lithium-ion battery with LG cells, providing up to 85 miles on pedal assist and 60 miles on throttle mode on a single charge. The included 48V 3 Amp charger replenishes the battery in approximately 7 hours, keeping you ready for your next adventure.

• Pedal & Gear System: Tailor your ride with 6 levels of pedal assist, seamlessly integrated with a Shimano Deore 10-speed rear derailleur, Shimano 10-speed thumb shift lever, and a 48T crankset for smooth shifting and efficient power transmission.

SPECIFICATIONS

General

Classes: Class 3 (Ebikes can go up to 37mph with pedal assistance)
Max Speed: Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
Range: Up to 85 Miles* on PAS, 60 Miles* on Throttle ( Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)

Frameset

Frame: 6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm
Fork: Air Suspension Fork with 100mm travel, with lockout
Rear Suspension: Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment

Wheels

Rim: Aluminum 26" 36H Front & Rear
Front Wheel Spokes: Black Stainless 13G x 255/257 mm, Front and Rear
Hubs: Disc Nutted Front / Rear Axles
Tire: Kenda 26" x 4.8" Fat Tires
Tire Size: 26" x 4.8"

E-system

Battery: Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
Charger: 48V 3 Amp Charger, Approx. 7 Hour Charging
Motor: 1000W （Peak 1200W），160Nm
Display: TFT Smart Easy Read Display with Backlight, Colorful screen
Pedal Assist: 6 Levels
Sensor: Torque Sensor
Throttle: Throttle on demand - Throttle from a complete stop
Light: Front 48V LED Light 80 LUX; Rear Blinking Light

Drivetrain

Shifter: Shimano 10-Speed Thumb Shift
Pedal Assist: 6 Levels
Crankset: 170mm w/ 48 T
Freewheel: Shimano 11-42T, 10-Speed CASSETTE
Pedals: Alloy Platform
Chain: KMC 134 Link, 10-Speed
Rear Derailleur: Shimano Deore RD-M4120 10-Speed

Components

Saddle: Comfortable Wide Saddle
Seatpost: Forged Alloy, φ31.6x300mm
Seat Clamp: φ38.1mm Quick Release
Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
Handlebar: Aluminum Ø31.8mm, Width 740mm
Headset: Sealed Bearing Headset
Grips: Ergonomic Comfort
Brakes: Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
Kickstand: Included, Rear Mount
Fenders: Not Included
Rear Rack: Not Included

Weight

Net Weight: 82 lbs / 37.2 kg (including battery)
Gross Weight: 111 lbs / 50.5 kg
Battery Weight: 11.4 lbs / 5.15 kg
Max Load Capacity: 385 lbs / 175 kg (including cargo)

Size

Product Size: 2100 x 1158 x 745 mm
Packing Size: 1700 x 350 x 900 mm
