RV Rider E-Bike Rack

HIGHLIGHTS

• Capacity: Two Bikes (Max. 80 lbs. per bike)

• Hitch Size: 2” only (Do not use a 1 ¼” -2” hitch adapter)

• Maximum bike wheelbase: 60”

• Minimum wheelbase: 36"

• Maximum tire width: 5"

• Not intended for use with motorized gasoline bicycles, mopeds, motorcycles or 3 wheel bikes (trikes), or electric scooters

• Rack Weight: 63.5 lbs.

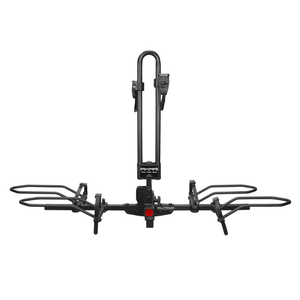

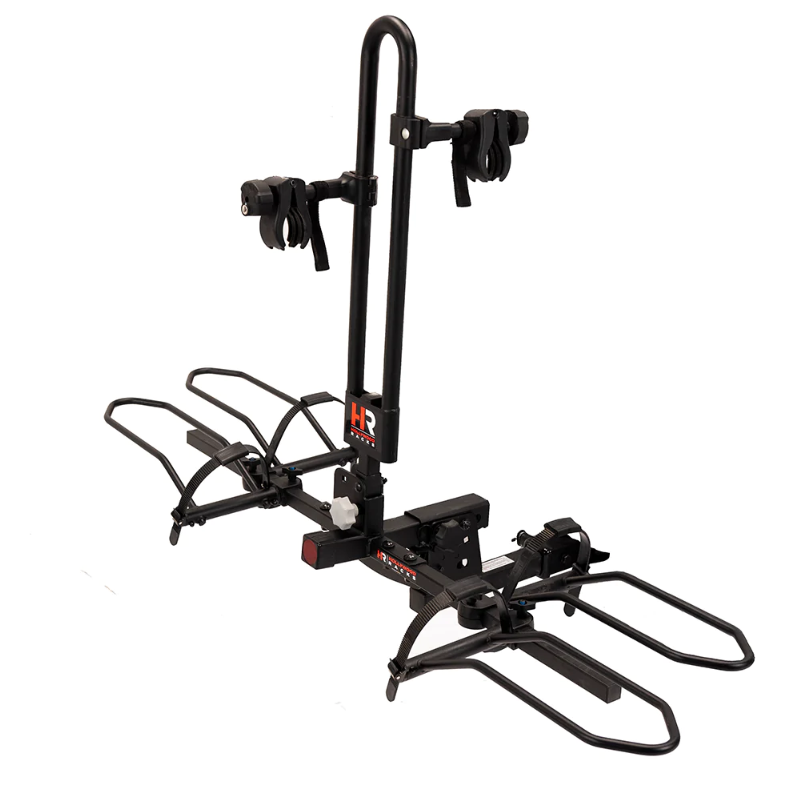

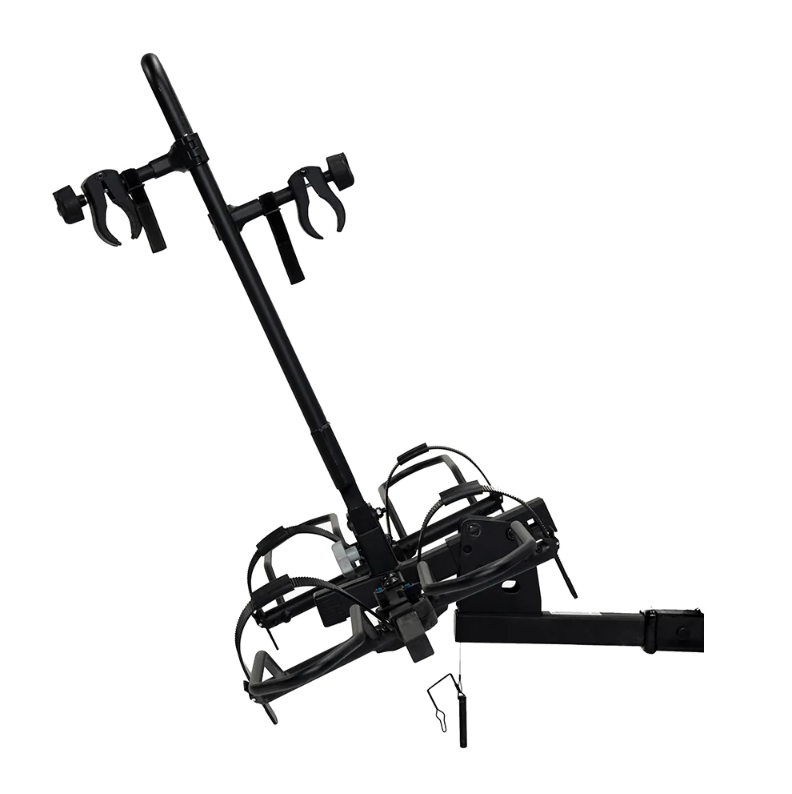

HR1700 RV Rider E-Bike Rack by Hollywood Racks

The RV Rider bike rack for RV's, motorhomes, and fifth wheels carries 2 E-Bikes (up to 80 lbs. each) on the back of an RV Motorhome, a 5th wheel, or a flat towed vehicle. Special features include universal heavy-duty wheel holders for heavy load carrying capacity. These wheel holders can fit any tire up to 5" wide and include a ratchet wheel strap. Locking frame grabbers secure the bikes in place. The frame grabbers can attach to a bike's frame or seat tube with a diameter range of 1"- 2", therefore Bike Adapters are not needed and should not be used. A locking cable and keyed alike hitch pin secure the bikes to the rack and the rack to the vehicle. The bike rack folds up when not in use and can tilt down for rear cargo access.

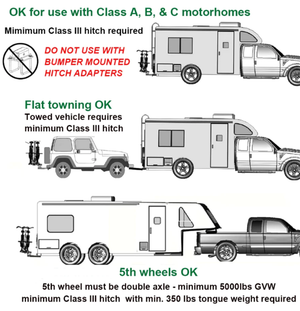

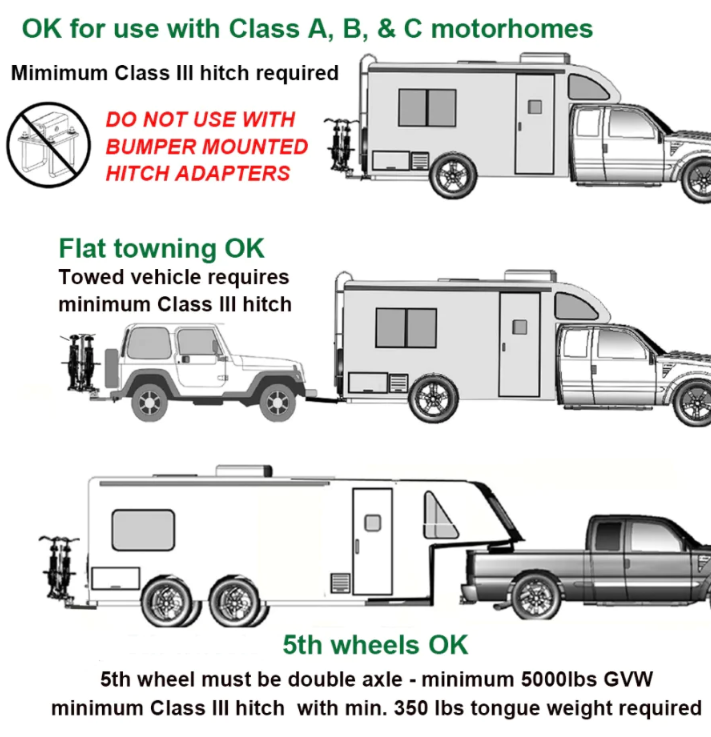

APPLICATIONS

Class A, B & C RV Motorhome:

Flat Towing:

5th Wheel:

• Minimum Trailer Hitch Tongue Weight: 350 lbs
• Minimum Vehicle Length: 24'
• Minimum GVW: 5,000 lbs
• Double Axle Required

A double-walled receiver tube handles the extra weight of the electric bikes. An included hitch tightener reduces motion inside the hitch (the receiver hitch must have a flange).  A minimum class 3 trailer hitch is required to use this bike rack.

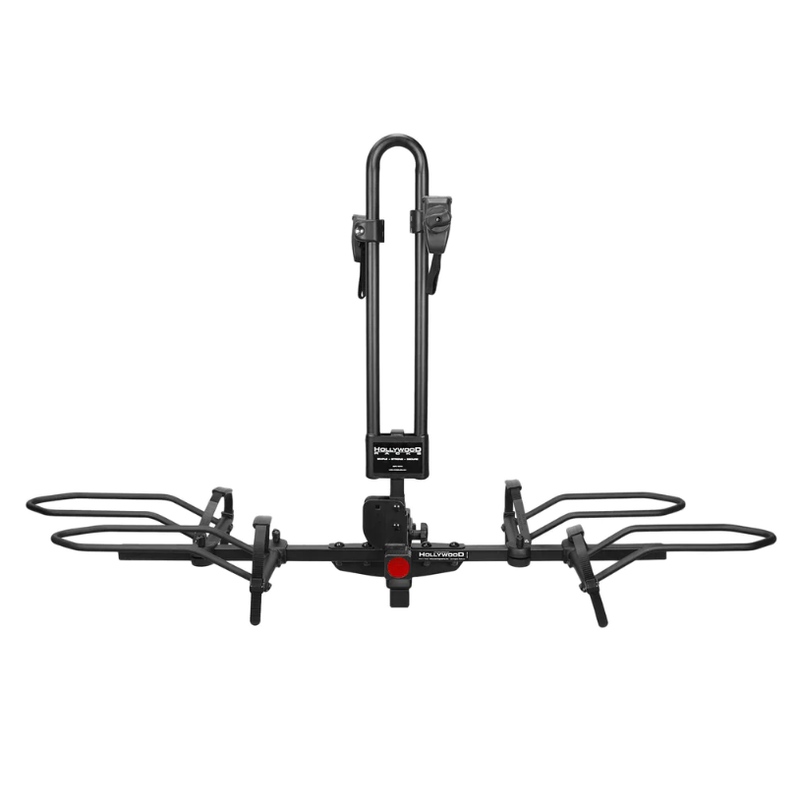

SPECIFICATIONS

Capacity: Two Bikes (Max. 80 lbs per bike)
Hitch Size: 2” only (Do not use a 1 ¼” -2” hitch adapter)
Maximum bike wheelbase: 60”
Minimum wheelbase: 36"
Maximum tire width: 5”

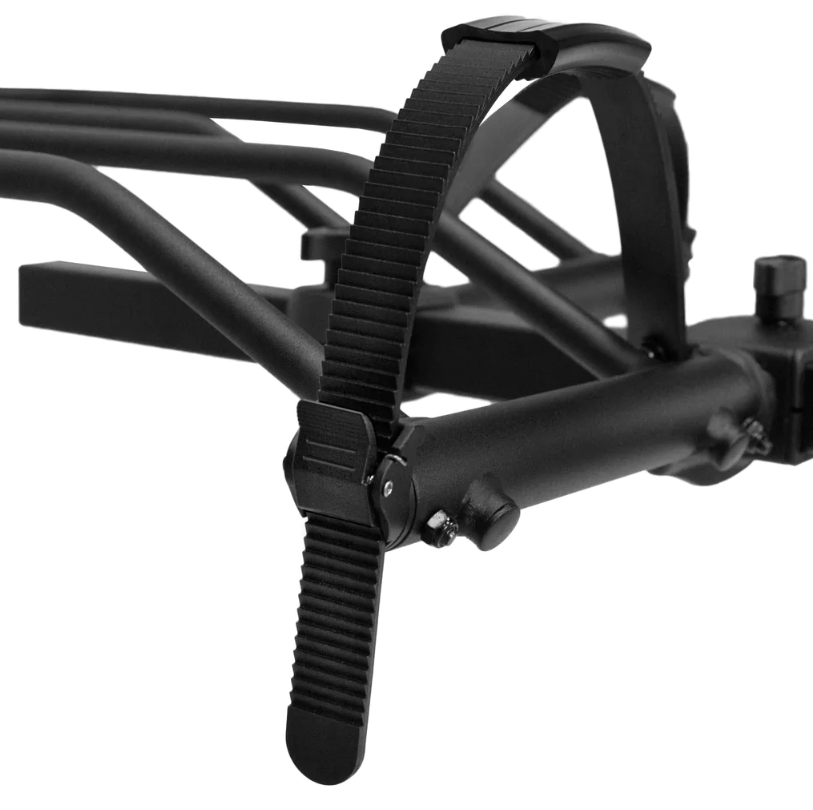

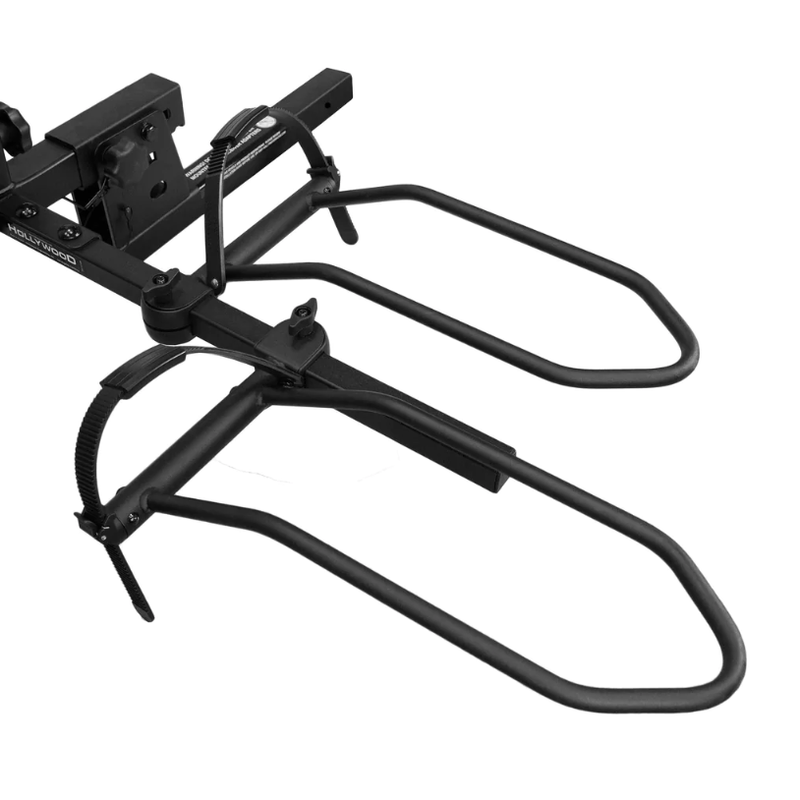

Features extra heavy duty wheel holders (Now with ratchet straps and rim protectors), an internally reinforced frame, and an external brace for heavy load carrying capacity
Includes keyed-alike locking hitch pin, 8’ security cable, and locking frame hooks

Patented “No-Wobble Hitch System" eliminates slack between the receiver and the rack without the use of tools

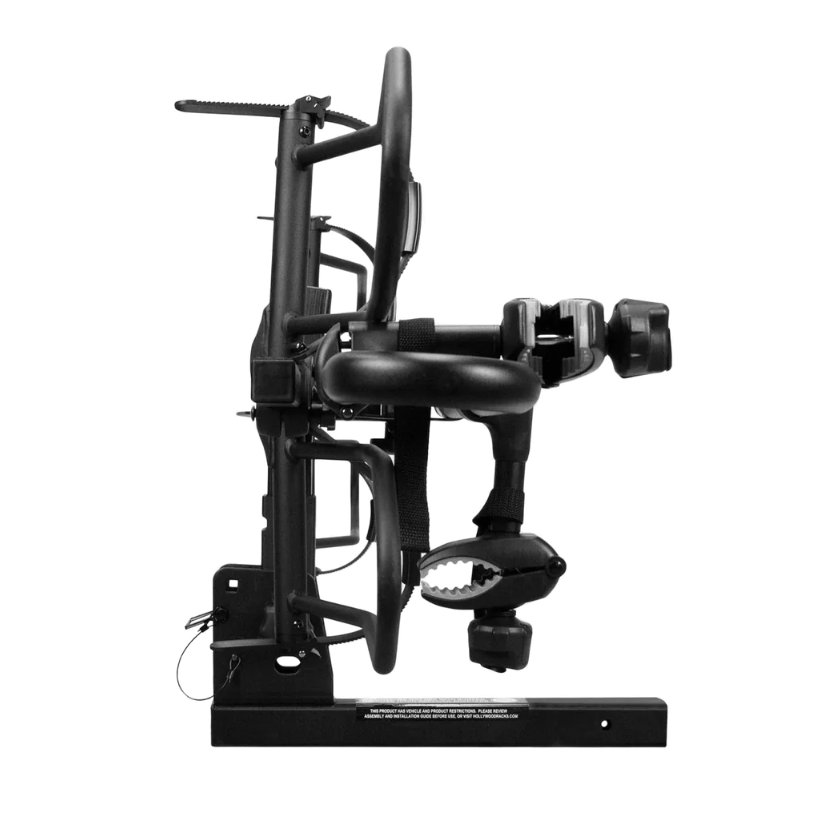

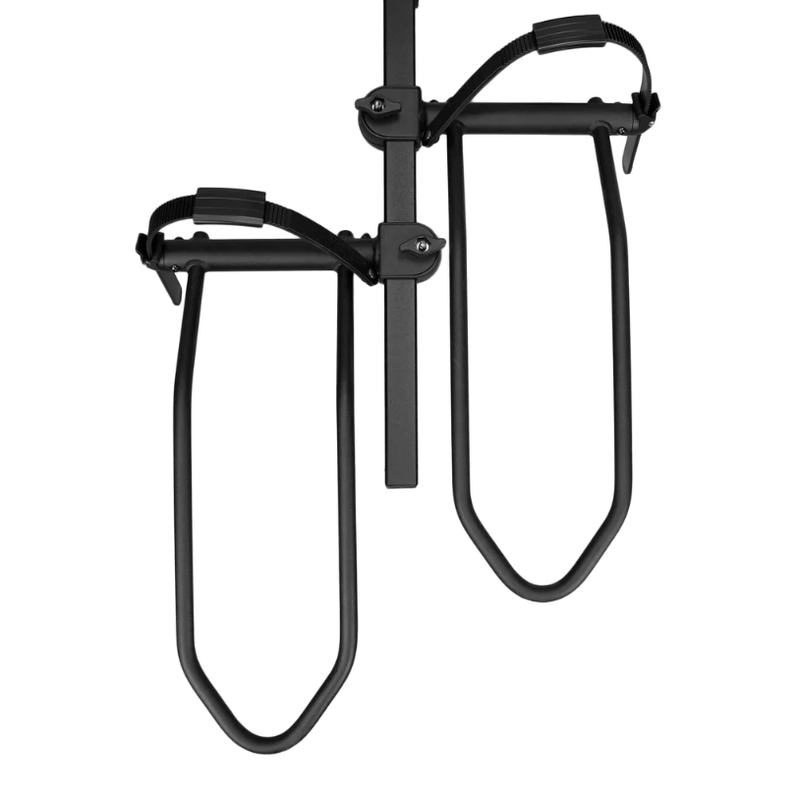

Folds flat against car when not in use

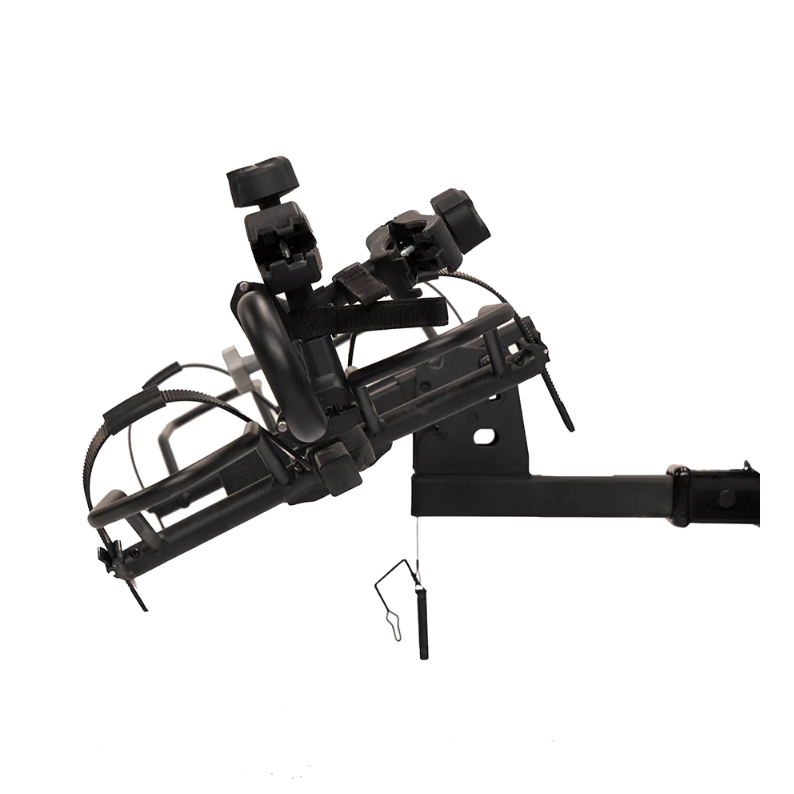

Tilts down for easy cargo door access

Space between bikes: 10

Now includes two Small Wheel Adapter (SW-ADP-U) for 20" Fat tire bikes rear wheels to prevent derailleur hanger interference (You will only need one per bike)

For step-through bicycles you will need to also purchase a Bike Adapter

Now includes a red safety strap to help secure the bikes to the central post and to each other

Rack Weight: 58 lbs.
Not to be used on front hitches
Not to be used with any 1-1/4" - 2" Adapter
Not to be used with any Hitch Extension longer than 8"

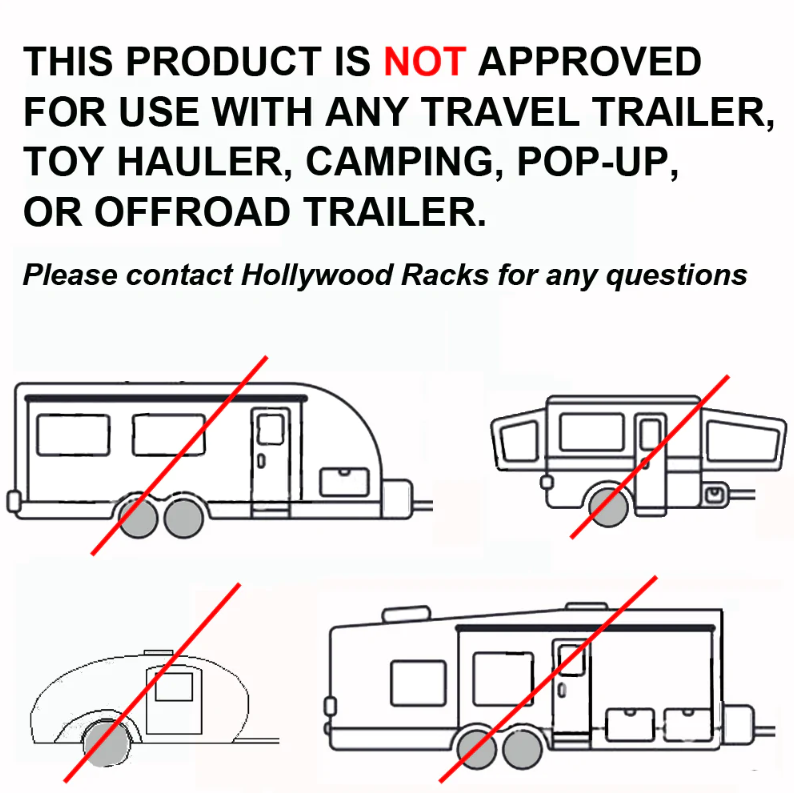

Not to be used on any trailer, fifth wheel or towed vehicle

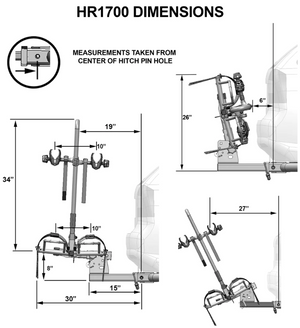

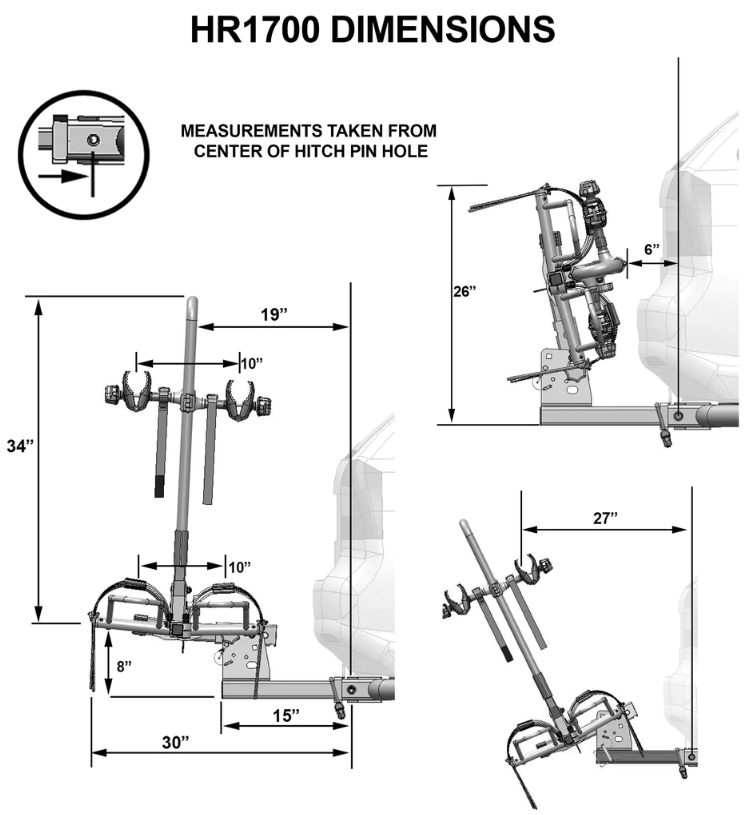

MEASUREMENT
