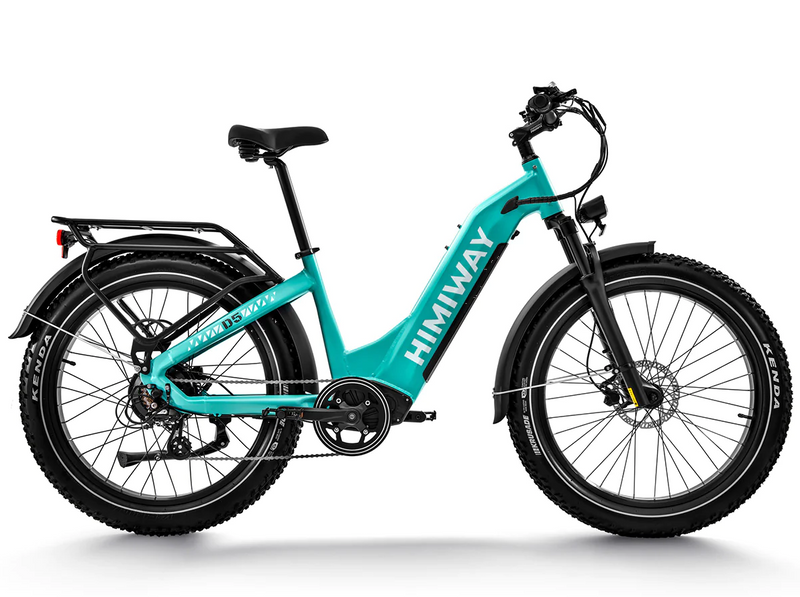

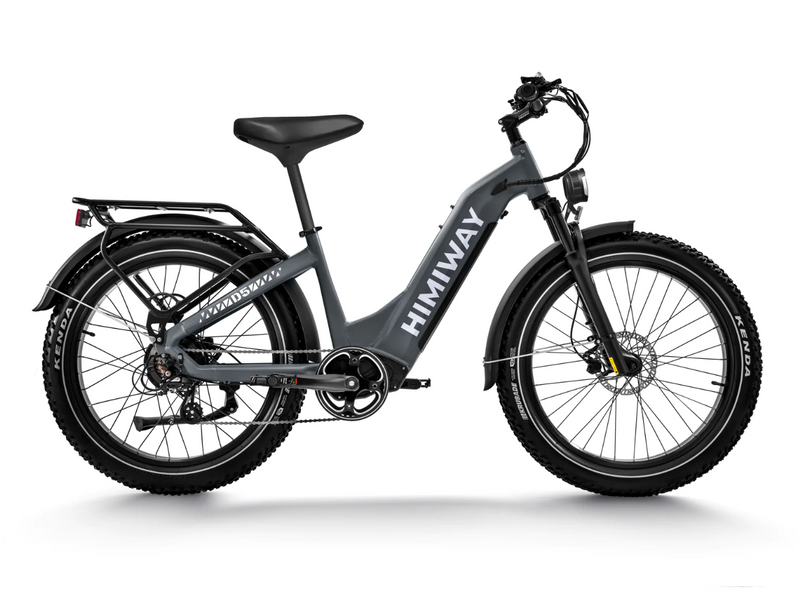

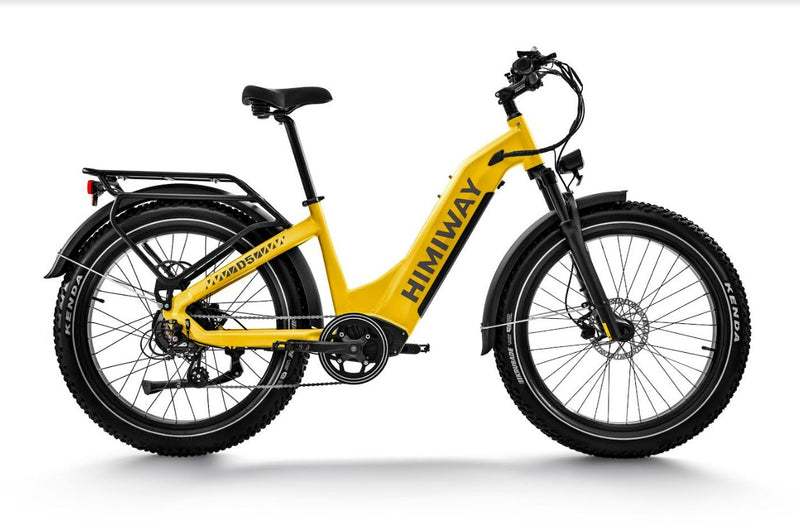

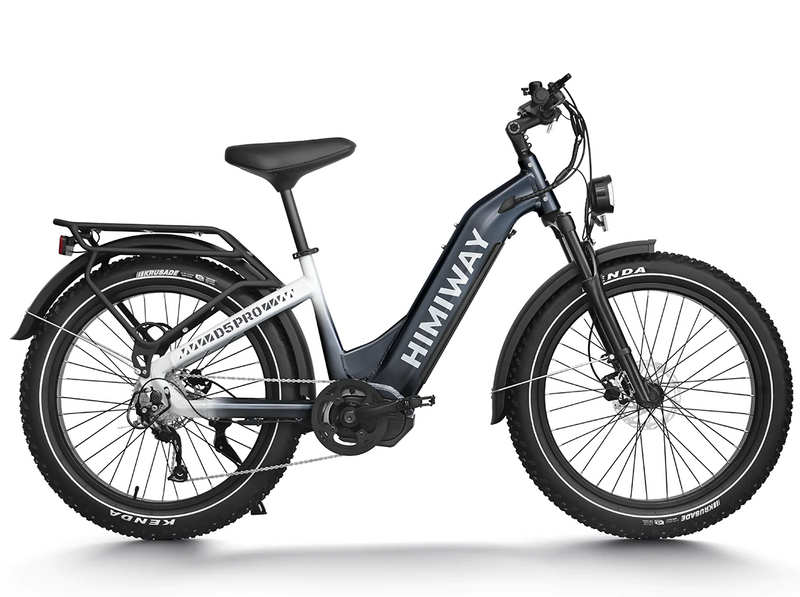

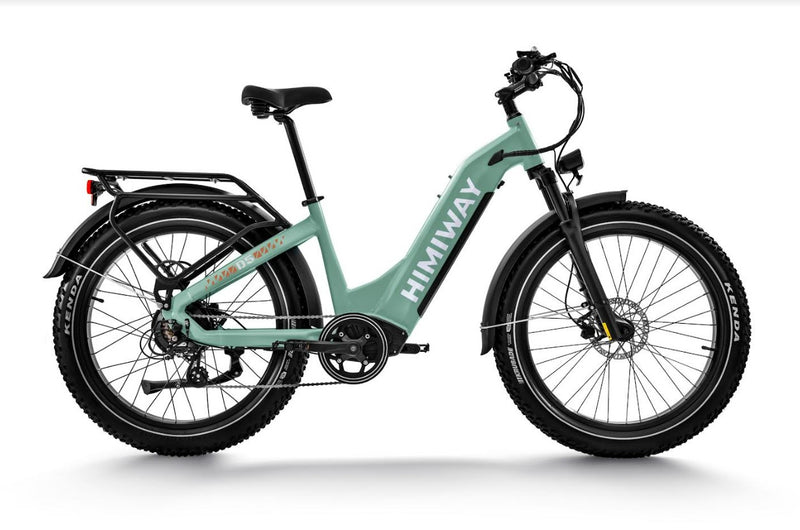

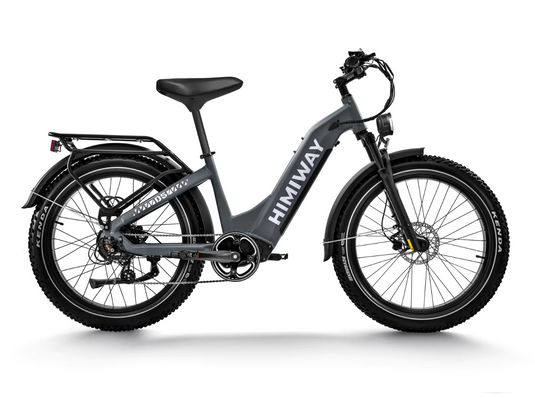

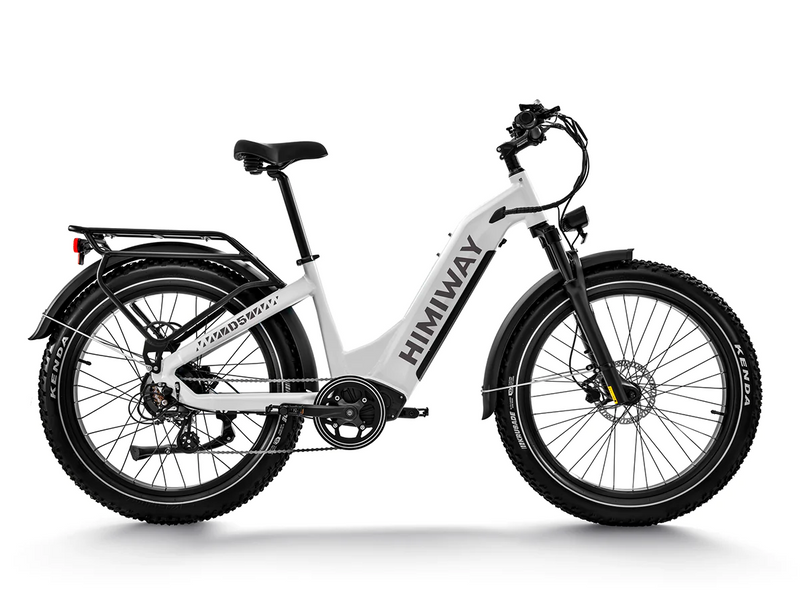

Himiway Zebra ST - Premium All-terrain Electric Fat Bike

HIGHLIGHTS

  • Frame: Upgraded 6061 Aluminum
  • Motor: 750W Geared Hub Motor / 86Nm Max Motor Torque
  • Battery: 48V 20Ah Samsung/LG Battery
  • Range: 80 Miles per Charge (estimate)
  • Gearing: Shimano 7 Speed
  • Weight Capacity: 400lbs
  • Weight: 79 lb.
  • Recommended Rider Heights: 5′3″ ~ 6′4″
  • Tires: 26″ x 4″ Kenda fat tires



Zebra Step-Thru Premium All-terrain Electric Fat Bike by HIMIWAY

A Blend Of Mountain & Urban Cruiser

Updated 6061 Aluminum Frame & Fully Integrated Battery Design

Himiway uses high-quality 6061 aluminum for the frame to give the bike unparalleled durability. Its reserved fork accommodates wider tires which allows you to upgrade to 4.8-inch tires. The integrated design gives you protection from inclement weather, eliminating up to 98% of common mechanical failures.



48V 20AH Samsung/LG Lithium-ion Battery

Himiway Zebra Step-Thru combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but larger diversity. Compared with 3500mAh cells made of nickel, cobalt and manganese, this 960Wh battery efficiently improves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and over 80+ miles with pedal-assist. The battery will maintain 80% capacity after 1000 charges.

60-80 Miles
Per Charge

5000mAh
Single Cell Capacity

960 Wh
Total Battery Capacity

7 hours
Time Until Fully Charge



750W Upgraded Brushless Geared Hub Motor

Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.



FULL SPECIFICATIONS

Battery: 48V 20Ah Samsung/LG lithium battery
Range: 60-80miles
Hub Motor: 750W brushless gear motor
Total Payload Capacity: 400 lbs
Recommended Rider Heights: 5'3" ~ 6'4"
Charger: US standard 3.0 A smart charger
Controller: 48V/22A
Display: LCD display with USB charging
Weight: 79lbs
Pedal Assist: Intelligent 0~5 level pedal assist



COMPONENTS

Tires: 26" x 4" Kenda fat tires
Brake lever: Aluminum alloy comfort grip levers with motor cutoff switch
Rear Light: Integrated Taillight
Freewheel: Shimano 7 speed gear shift system
Brake:180MM Hydraulic Brakes
Chain: KMC chain
Stem: Promax MA-400 SSABK
Crank: 170mm forged alloy
Gearing: Shimano- 14-28T BROWN/BK
Front Fork: Alloy front suspension fork with lockout and adjustment
Throttle: Half twist throttle
Pedal: Alloy pedal with reflectors
Bike Frame: 6061 Aluminum frame
Front Light: 48V LED light
Saddle: SR saddle
Seat Post Diameter: 30.9mm length 300mm
Kickstand: Heavy duty aluminum
Spokes: 13 Gauge on the front / 12 Gauge on the back



GEOMETRY

Disclaimer: Some advertising policies allow electric bikes with a max speed of 15.5mph. Ask us via email, phone or chat for more details.
