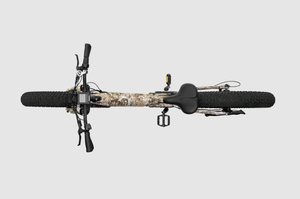

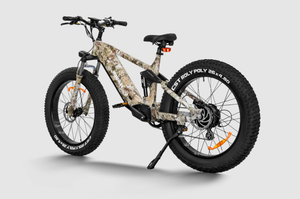

Himiway Cobra Full Suspension Electric Mountain Bike

Color

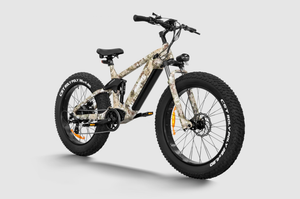

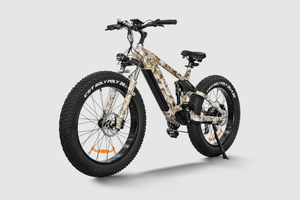

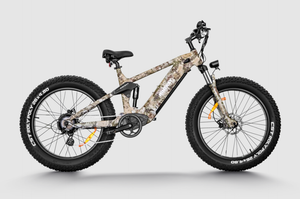

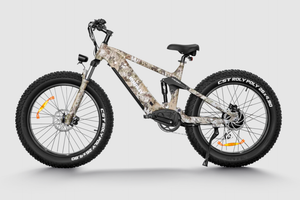

Forest Cobra

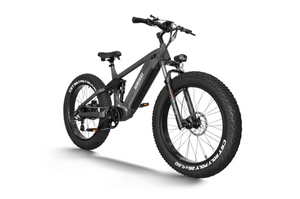

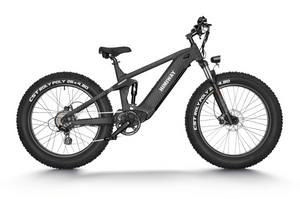

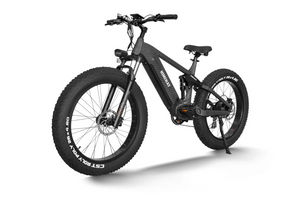

King Cobra
Availability

HIGHLIGHTS

  • Frame: Upgraded 6061 Aluminum
  • Motor: 750W Geared Hub Motor / 86Nm Max Motor Torque
  • Battery: 48V 20Ah Samsung/LG Battery
  • Range: 80 Miles per Charge (estimate)
  • Gearing: Shimano 7 Speed
  • Weight Capacity: 400lbs
  • Weight: 79 lb.
  • Recommended Rider Heights: 5′3″ ~ 6′4″
  • Tires: 26″ x 4.8″ CST fat tires



Cobra Full Suspension Electric Mountain Bike by HIMIWAY



Smoothest Ride on the Mountain

Four-Bar Linkage Suspension & Coil Suspension

Himiway Cobra is the first e-bike on the U.S. market with four-bar linkage suspension technology. The four-bar linkage represents a four-sided polygon: the chain stay, seat stay, rocker, and seat tube. These specialize in absorbing both rear-upward force and vibrations, while the coil suspension ensures front stability. Both suspensions guarantee your safety in the toughest riding conditions.



Upgraded 6061 Aluminum Frame & Fully Integrated Battery Design

Himiway uses high-quality 6061 aluminum for the frame to give the bike unparalleled durability. Its reserved fork accommodates wider tires, which allow you to upgrade to 4.8-inch tires. The integrated design protects from inclement weather, eliminating up to 98% of common mechanical failures.


48V 20Ah Samsung/LG Lithium-ion Battery

Himiway Cobra combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.

60–80 Miles
Per Charge

5000mAh
Single Cell Capacity

960 Wh
Total Battery Capacity

7 hours
Time Until Fully Charged



750W Brushless Geared Hub Motor

Himiway’s high-end geared hub motor uses the latest updated inner ring, enabling high-temperature resistance and better heat dissipation. The inner ring reduces the motor magnets’ attenuation speed to guarantee longer life expectancy. The geared hub provides massive amounts of torque when powering up steep hills or accelerating quickly from a dead stop. With 1000W of peak motor power, you can easily conquer the most rugged terrains.



FULL SPECIFICATIONS

Battery: 48V 20Ah Samsung/LG lithium battery
Range: 60–80 miles
Hub Motor: 750W brushless geared hub motor
Total Payload Capacity: 400 lb.
Recommended Rider Heights: 5′3″ ~ 6′4″
Charger: US standard 3.0 A smart charger
Controller: 48V/22A
Display: LCD display with USB charging
Weight: 88 lb.
Pedal Assist: Intelligent 0~5 level pedal assist



COMPONENTS

Tires: 26″ x 4.8″ CST fat tires
Brake lever: Aluminum alloy comfort grip levers with motor cutoff switch
Rear Light: Battery-powered bike light
Freewheel: Shimano 7 speed gear shift system
Brake: 180mm hydraulic brakes
Chain: KMC chain
Stem: Promax MA-400 SSABK
Crank: 170mm forged alloy
Gearing: Shimano- 14-28T BROWN/BK
Front Fork: Alloy front suspension fork with lockout and adjustment
Throttle: Half-twist throttle
Pedal: Alloy pedal with reflectors
Bike Frame: 6061 Aluminum frame
Front Light: 48V LED light
Saddle: SR saddle
Seat Post Diameter: 30.9mm, length 300mm
Kickstand: Heavy-duty aluminum
Spokes: 13 gauge on the front, 12 gauge on the back



GEOMETRY
