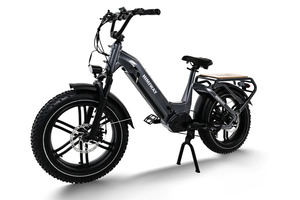

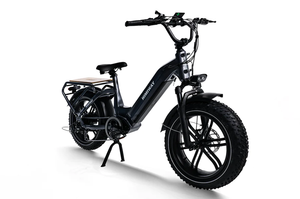

Himiway Big Dog Electric Cargo Bike

Availability

HIGHLIGHTS

  • Frame: Upgraded 6061 Aluminum
  • Motor: 750W Geared Hub Motor / 86Nm Max Motor Torque
  • Battery: 48V 20Ah Samsung/LG Battery
  • Range: 80 Miles per Charge (estimate)
  • Gearing: Shimano 7 Speed
  • Weight Capacity: 400lbs
  • Weight: 79 lb.
  • Recommended Rider Heights: 5′3″ ~ 6′4″
  • Tires: 20″ x 4″ Kenda fat tires

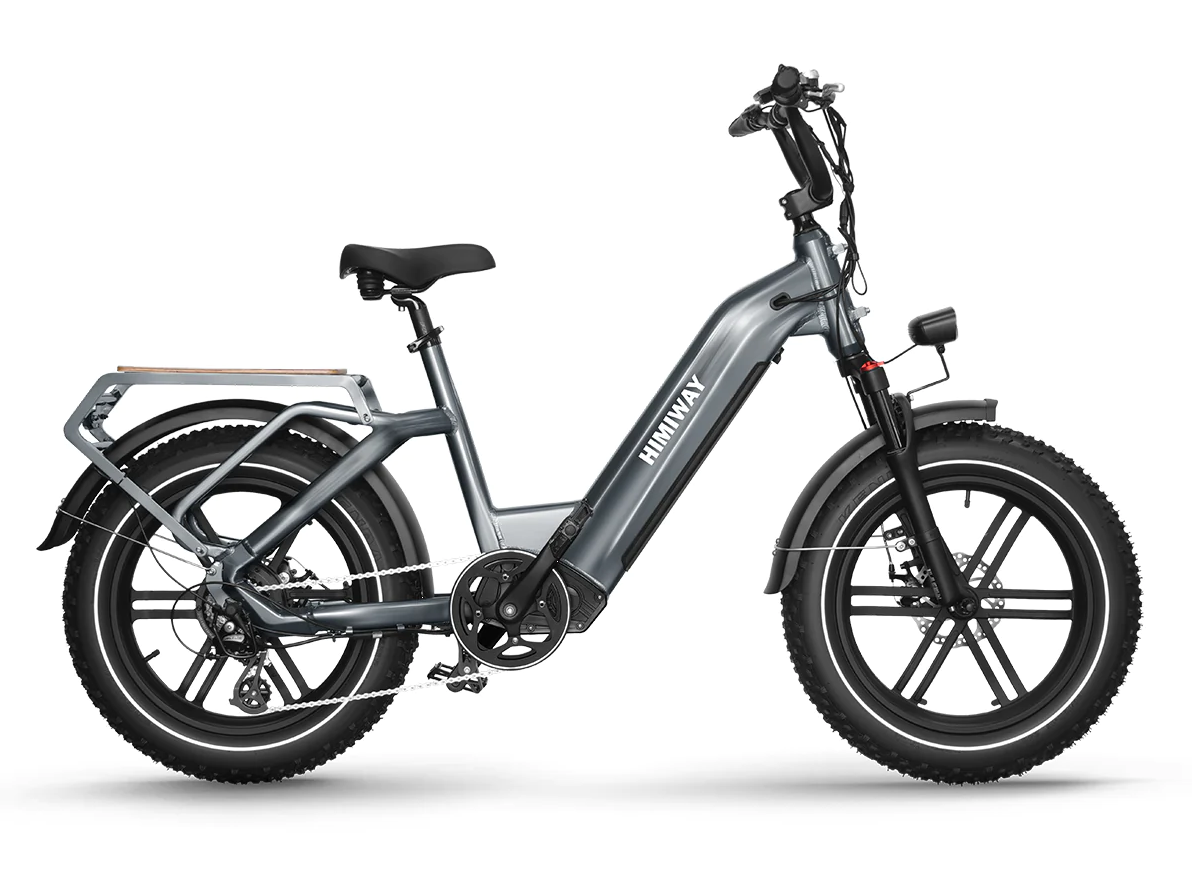

Big Dog Electric Cargo Bike by HIMIWAY

Extra Diverse, Large, Multifunctional Rear Racks & Fully Integrated Battery Design

The sturdy, multifunctional rear rack carries cargo of all shapes and sizes. The integrated battery design helps maintain capacity and can reduce mechanical failures in even the most extreme weather conditions by up to 95%. Attention: Extra Rear Racks are not included in the box.

750W Upgraded Brushless Geared Hub Motor

The Big Dog’s motor uses an updated and specialized inner ring, which enables high-temperature resistance and better heat dissipation. This inner ring reduces the motor magnets’ attenuation speed, which guarantees longer life expectancy for the motor, meaning your Himiway Big Dog will outlast the competition where it matters most—the power system. Big Dog’s brushless geared hub motor will help you conquer any obstacle in your chosen terrain.

48V 20Ah Samsung/LG Lithium-ion Battery

Himiway Big Dog combines the new Samsung/LG battery technology with a 5000mAh single cell capacity—smaller size but larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and over 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.

60-80 Miles
Per Charge

5000mAh
Single Cell Capacity

960 Wh
Total Battery Capacity

7 hours
Time Until Fully Charge



FULL SPECIFICATIONS

Battery: 48V 20Ah Samsung/LG lithium battery
Range: 60–80miles
Hub Motor: 750W brushless gear motor
Total Payload Capacity: 400 lbs
Recommended Rider Heights: 5′3″ ~ 6′4″
Charger: US standard 3.0 A smart charger
Controller: 48V/22A
Display: LCD display with USB charging
Weight: 79 lb.
Pedal Assist: Intelligent 0~5 level pedal assist

COMPONENTS

Tires: 20″ x 4″ Kenda fat tires
Brake lever: Aluminum alloy comfort grip levers with motor cutoff switch
Rear Light: Integrated tail light
Freewheel: Shimano 7 speed gear shift system
Brake:180mm mechanical disc brakes
Chain: KMC chain
Stem: Promax MA-400 SSABK
Crank: 170mm forged alloy
Gearing: Shimano- 14-28T BROWN/BK
Front Fork: Alloy front suspension fork with lockout and adjustment
Throttle: Half twist throttle
Pedal: Alloy pedal with reflectors
Bike Frame: 6061 Aluminum frame
Front Light: 48V LED light
Saddle SR saddle
Seat Post Diameter 30.9mm, length 300mm
Kickstand Heavy-duty aluminum
Spokes One wheel



GEOMETRY
