EUNORAU FAT-HS 1000W All Terrain Electric Hunting Bike

Frame
Main Battery
Extra Battery

HIGHLIGHTS

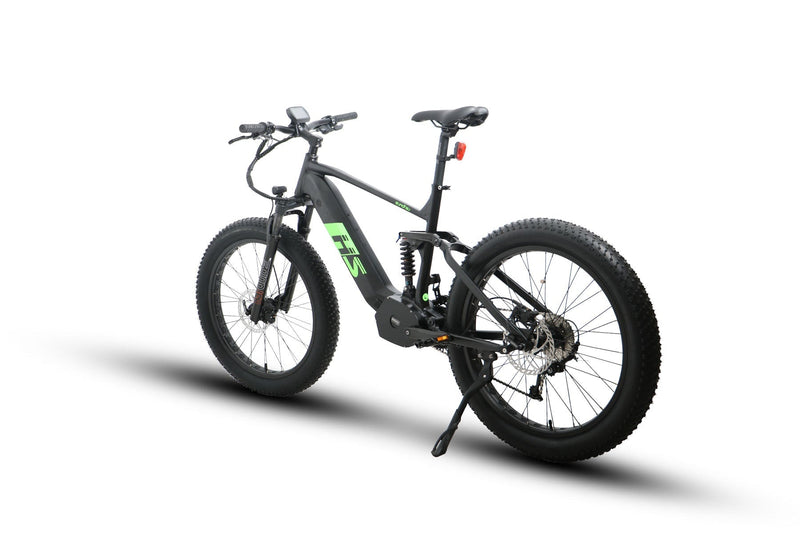

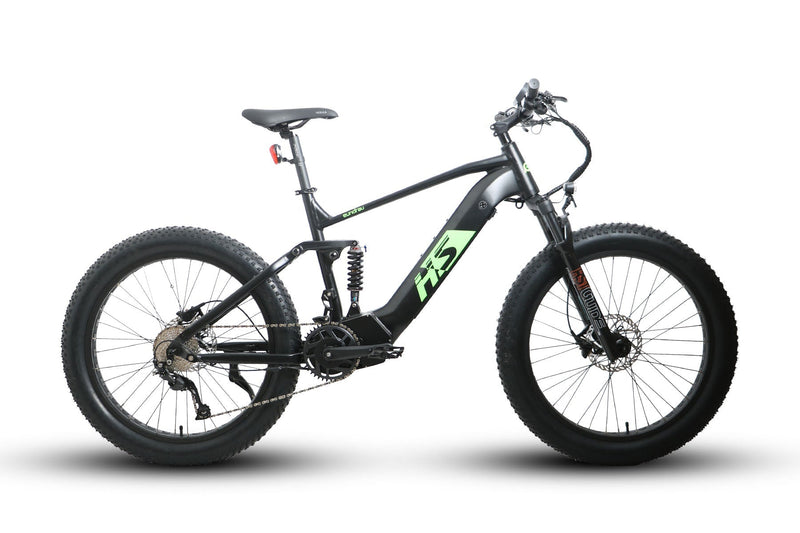

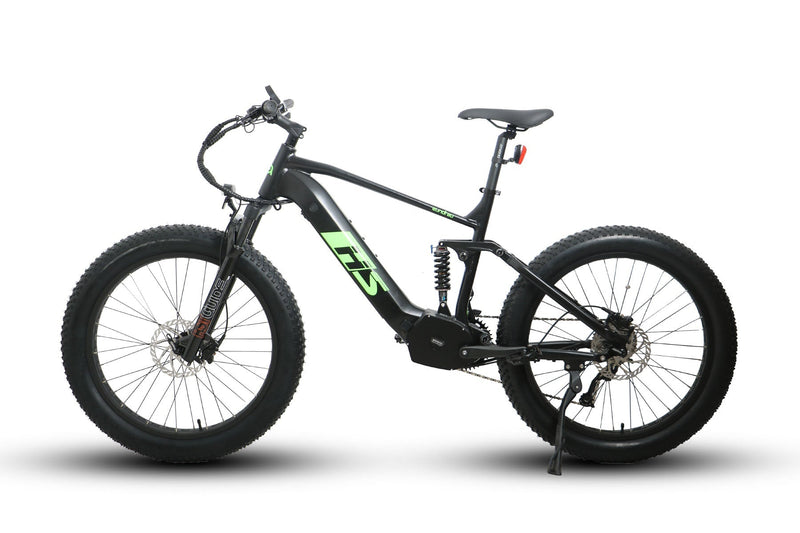

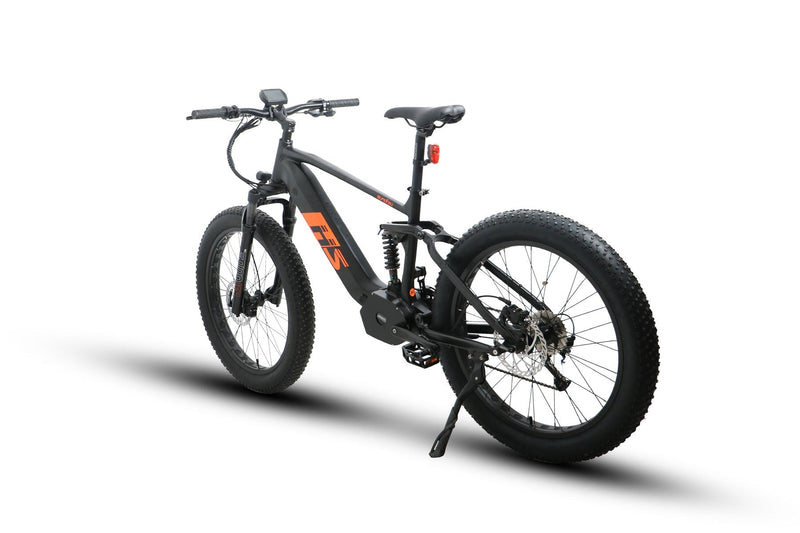

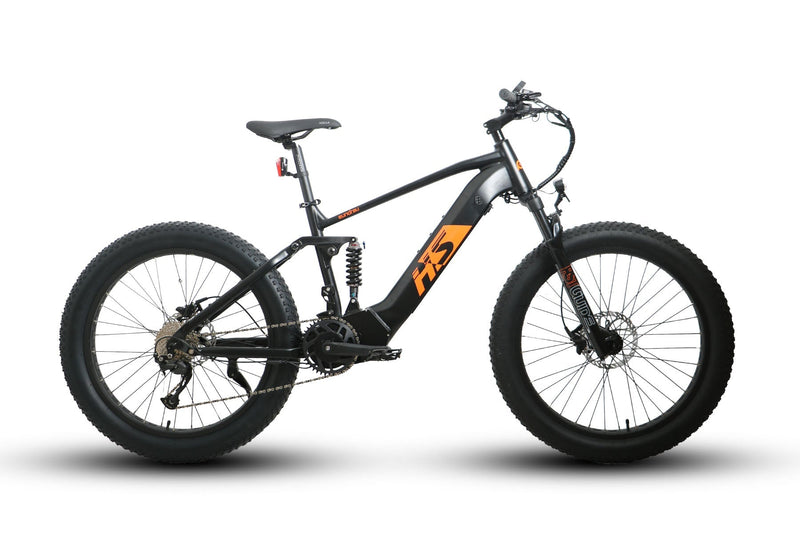

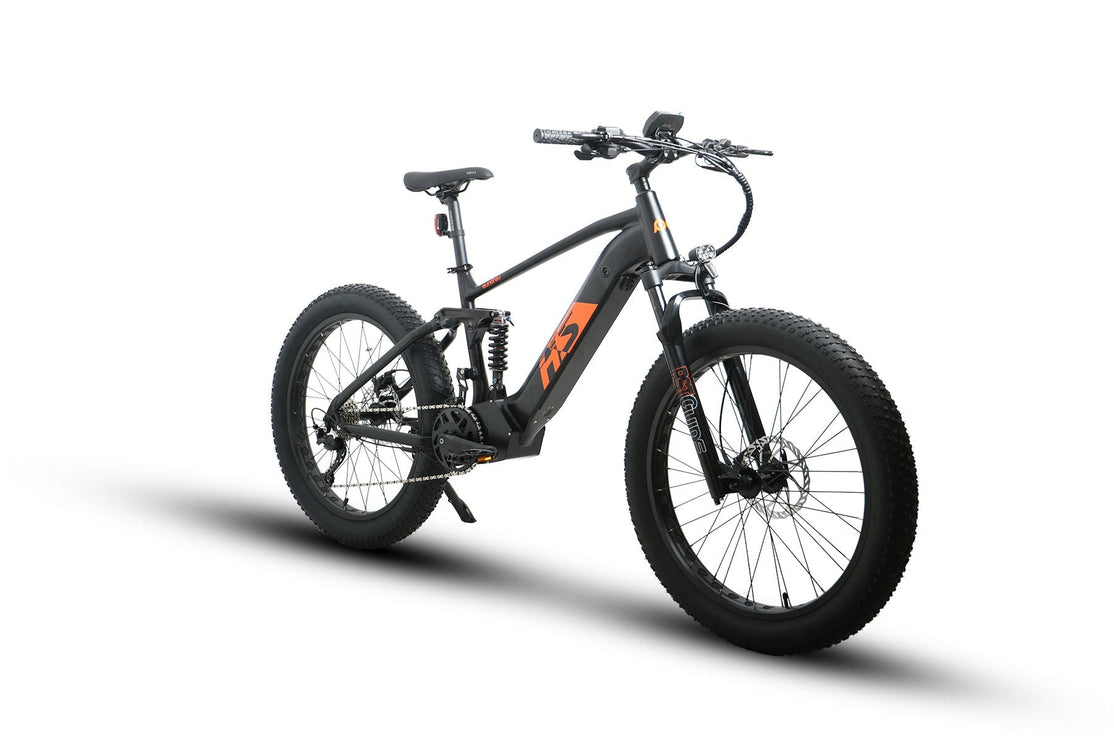

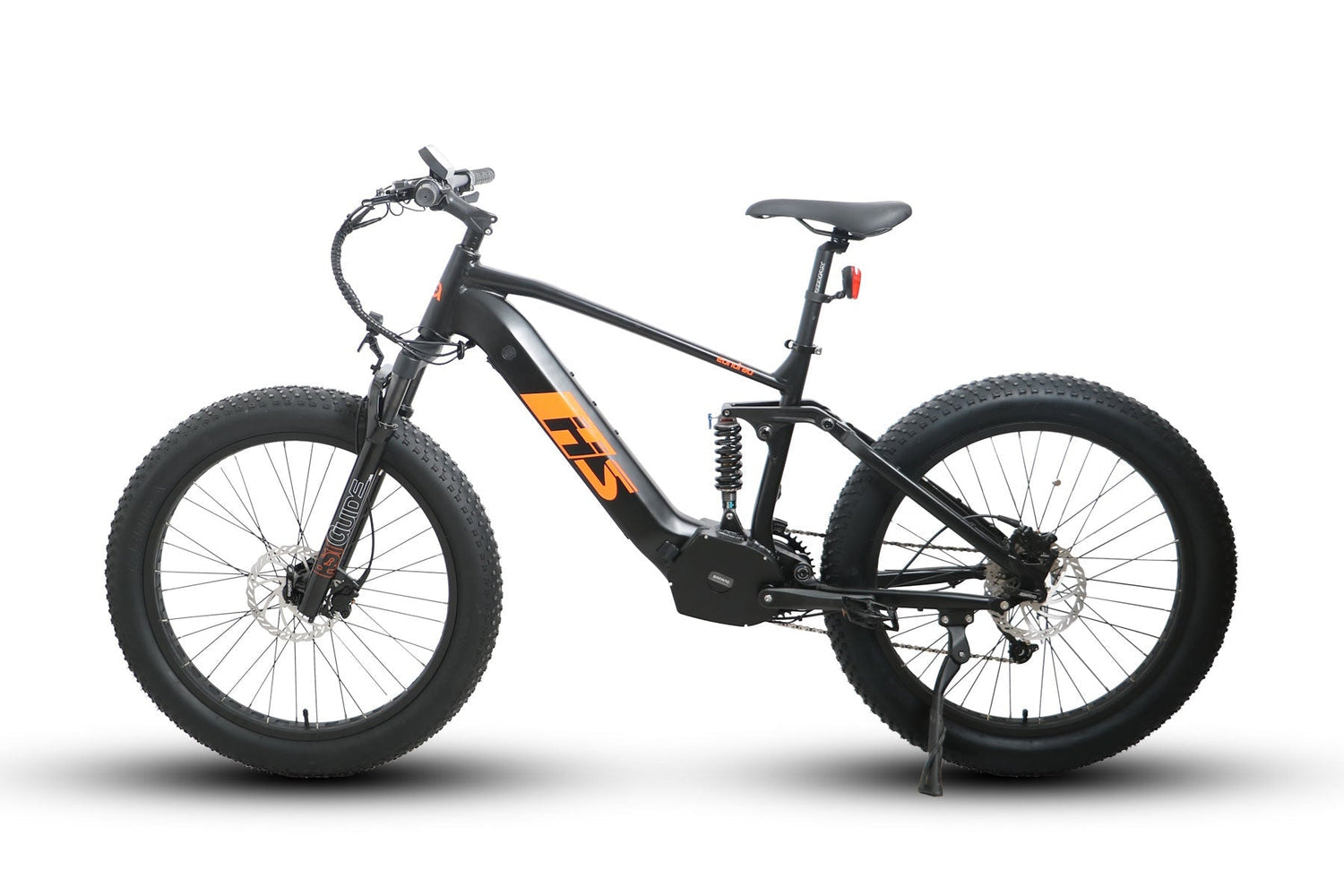

  • Color: Black / Orange (17" Frame) & Black / Green (19" Frame)
  • Battery: 48V 14Ah / 17Ah SAMSUNG
  • Max Range: 80 Miles
  • Motor: 48V 1000W BAFANG M615 mid drive motor(Cadence Sensor)
  • Weight Capacity: 440 lbs
  • Weight: 70lbs
  • Recommended Rider Heights: 5'3" ~ 6'4"
  • Tires: Kenda Krusade Sport Tires 26 x 4.0 with K-Shield Protection
  • Gearing: Shimano Alivio (Or Sunrace RDM91) 9 Speed 11-34T
  • Front Fork: RST GUIDE 75mm Travel
  • Box Dimensions: (cm) 168 L x 34.5 W x 85 H



48V 1000W FAT-HS Dual Battery All Terrain Full Suspension Fat Tire Electric Mountain / Hunting / Fishing Bike by EUNORAU

FAT-HS at the beach

Mid Motor & Dual Suspension & Dual Battery

The FAT-HS has a Bafang mid-drive motor with 1000 nominal watts of power and a whopping 160 Newton meters of torque, for a max speed of 30 mph. This motor feels every bit as powerful as it sounds. And because it’s a mid-drive, it’s also able to utilize the gearing of the bike for either extra torque or extra speed depending on what gear you’re in. This is a feat that hub drives simply cannot do. It’s also something you absolutely want if you plan on tackling extreme steep hills, deep mud, snow or sand, or if you plan on towing a trailer with extra gear which is something you could most definitely do with the FAT-HS.

Bafang M615 BBSHD Mid-Drive System

The Bafang M615 system features the G320 electric motor with over 1500 watts of peak power, 160Nm of torque and cadence-sensing assist. This allows you to span cities, climb hills, and explore all the places you want to go with ease.


Shimano Alivio 9 Speed

Shimano 9 Speed Gear Shift System

The Shimano 9 speed freewheel means you can shift to a larger cog for uphill riding and downshift to a smaller cog for high speed riding. In combination with the pedal-assist system, you can adjust the most suitable speed to complete your journey.


Headlight

6V-60V LED Headlight

Light the path with the front light powered by the bike's battery. It can be turned on/off on the handlebar control pad. The headlight is bright enough to make night driving much safer and more enjoyable.


Front Suspension

Front Suspension

The RST fork effectively absorbs most of the jarring bumps and shocks, especially on complicated and rugged routes, reducing your tiredness and allowing you to ride faster.


Rear Suspension

Rear Suspension

The rear suspension sets the FAT-HS apart from the rest of our lineup, making it the ultimate eBike. Take on any trail with maximum comfort and control.


LCD Display

LCD Display

With waterproof connectors, display the battery bar/ riding speed / riding mileage / motor output power, etc. Push mode: Use it when you need to push the bike uphill.


Removable Lithium Battery

Removable Lithium-Ion Battery

Our removable battery system offers unmatched convenience for re-charging. With the twist of a key, your battery can be brought inside and set to charge. We offer a variety of battery capacity options, each providing a different amount of range.


Kenda Krusade Tires

26"X4" KENDA Krusade Sport Tires

26"x4" Kenda Krusade Sport fat tires provide upgraded grip and traction on rugged roads. Whether you're up against sand, mud or snow, these tires will handle it with ease. The EUNORAU FAT-HS is ready for all-season, all-terrain riding.


Hydraulic Brake

180MM Hydraulic Disc Brakes

Sensitive EUNORAU 180mm hydraulic disc brakes provide ample braking force even in the harshest conditions efficiently.



SPECIFICATIONS

Battery: 48V 14Ah / 17Ah SAMSUNG
Max Range: 80 Miles
Motor: 48V 1000W BAFANG M615 mid drive motor(Cadence Sensor)
Total Payload Capacity: 440 lbs
Recommended Rider Heights: 5'3" ~ 6'4"
Charger: US standard 2.0 A smart charger
Controller: 48V / 30A
Display: CDC6 LCD Display
Weight: 70lbs
Pedal Assist Intelligent: 0~5 level pedal assist
Box Dimensions: (cm) 168 L x 34.5 W x 85 H



COMPONENTS

Tires: Kenda Krusade Sport Tires 26 x 4.0 with K-Shield Protection
Brake lever: Hydraulic disc Brakes Levers with motor cutoff switch
Rear Light: Taillight
Freewheel: SHIMANO(Or SUNRACE RDM91) ALIVIO 9 speed gear shift system
Brake: EUNORAU Design 180MM Hydraulic Disc Brakes
Throttle: Thumb throttle
Stem: EUNORAU TDS-D507G-8FOV
Crank: 170mm forged alloy
Gearing Shimano- 11-34T
Front Fork: RST GUIDE 75mm Travel
Rear SHOCK: KS-388RL,48mm
Pedal: Nylon pedal with reflectors
Bike Frame: Aluminum Alloy 6061 Full Suspension
Front Light: 6-60V LED light
Saddle: Comfortable Saddle
Tool: Included
Sprocket: 42T 7075 CNC chain-wheel crank
Rims: 26 inch Black Alloy wheels



Bike Geometry
